ACF Big Pharma Clamp Part No. ACF-C100 New reusable Pharma Clamp for tubing up to 1“ ID (25,4 mm) Dim. 77x65x19 mm; Seat distance when closed 3,6 mm, tubing wall should be at least 2,38 mm (0,094“).
|
|
ACF Secure Valve Clamp Part No. ACF-C075 New reusable Secure Valve Clamp for tubing up to 0,700“ OD (18,0 mm) Dim. 70x30x20 mm; Will operate up to 100 psi when placed correctly on the tubing. |
|
DB17_04 |
|
Order No. |
Description |
For tubing Size (mm) |
For tubing Size (inch) |
Dimensions (mm) |
Material |
Colour |
|
ACF-C100 |
Big Pharma-Clamp |
25,4 |
1 |
77x65x19 |

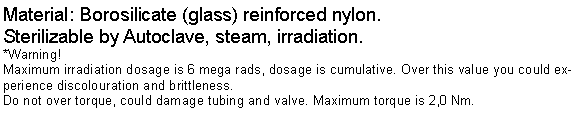

Borosilicate reinf. nylon |
white |
|
ACF-C075 |
Secure Valve-Clamp |
18,0 |
0,7 |
70x30x20 |
Borosilicate reinf. nylon |
white |
|
Tube Clamp |
0—17 |
0-0,65 |
45x38 |
Delrine |
Yellow/red |
|
|
Tube Clamp |
0—17 |
0-0,65 |
45x38 |
Polysulfone |
Yellow/pink |
|
|
INF14007 |
Pinch Clamp |
10,0 |
0,268 |
39x26 |
PP |
white |
|
INF11014 |
Slide Clamp |
16,0 |
0,375 |
72x32 |
HDPE |
white |
|
INF01040 |
Pinch Clamp |
6,0 |
0,2362 |
24x15 |
PP |
nature |
|
INF04060 |
Pinch Clamp |
8,1 |
0,3188 |
30x18 |
Polyacetal |
nature |
|
INF02060 |
Pinch Clamp |
18,8 |
0,433 |
62x34 |
Polyacetal |
white |
|
INF340TCL |
Medi Clamp Large |
18,8 |
0,433 |
56x34 |
PE |
nature |
